HPORTEK / Signal GeneratorsSYASG-B500K40G
Signal Generators
SYASG-B500K40GPortable Analog Signal Generator
The SYASG-B500K40G is a portable analog signal generator covering 500 kHz to 40 GHz for field test. It uses analog FM, PM, and AM techniques, with a 10.1" LCD touchscreen.
- Ultra-wide frequency range
- Rich modulation formats
- Integrated 10.1" LCD touchscreen
- User-friendly interface
- All-in-one chassis, easy to carry
- Arbitrary frequency step
TECHNICAL DATA
Technical specifications
Specifications correspond to the product catalogue. Contact our technical team for configuration and operating conditions.
| Parameter | Specification / typical value |
|---|---|
| Functional Specifications | |
| Built-in self-test | Supported |
| Remote control | Supported |
| Graphical user interface | Supported |
| Logging and more | Supported |
| Technical Specifications | |
| Output Frequency | 500kHz～40GHz |
| Frequency Accuracy | ≤1ppm |
| Instantaneous Bandwidth | ≤800MHz |
| Power Range | -100dBm～5dBm |
| Power Step | ≤0.1dB |
| Power Accuracy | ≤±1.5dB（-60dBm＜P＜5dBm） |
| VSWR | ≤1.8：1 |
| Spurious Suppression | ≥50dBc |
| Harmonic Suppression | ≥28dBc |
| Phase Noise (1 GHz) | ≤-115dBc/Hz@10kHz |
| Signal Formats | FM, AM, PM, etc. |
| General Specifications | |
| Dimensions (L×W×H) | 320 mm × 240 mm × 60 mm (excluding corner guards and handle) |
| Weight | ≤5 kg (including battery) |
| Battery Life | ≥2h |
| Operating Temperature | -10℃～40℃ |
| Storage Temperature | -25℃～+70℃ |
Specifications are subject to change without notice. Contact our technical team for full conditions, interface definitions, and ordering information.
SYSTEM ARCHITECTURE

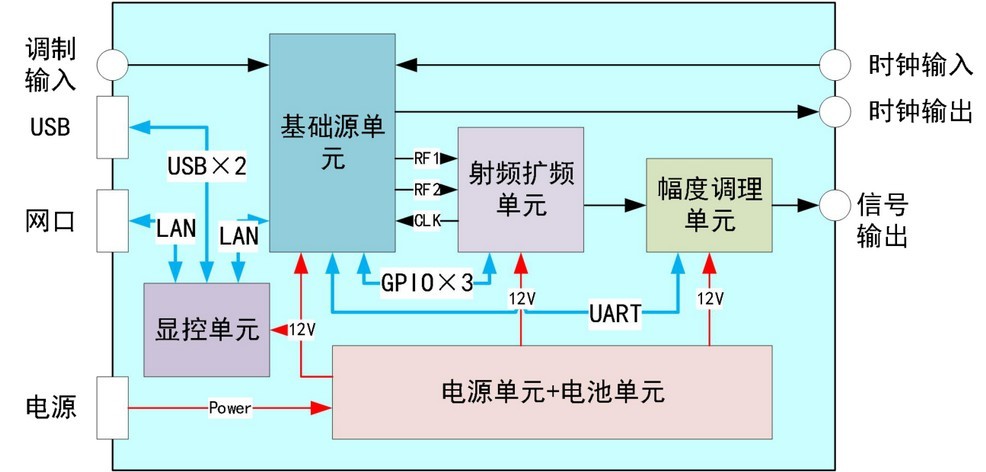

Product block diagrams
Handling notes
- Take anti-static precautions and ensure device ports are clean before use.
- Use a torque wrench to tighten coupling nuts where applicable.
- Check connector pin depth before calibration to avoid damage to calibration devices.
