SYHS-DRFMHigh-Speed Acquisition & Generation Board

The SYHS-DRFM is a general-purpose high-speed acquisition and generation platform integrating one dual-channel high-speed DAC, one dual-channel low- speed ADC, and one dual-channel high-speed ADC, with multi-bus communication and control. Built around the ZYNQ processing core, it performs filtering, channelization, and decimation. The PS side has 1 GB memory and the PL side 2 GB, with UART, RS422, GPIO, and Ethernet interfaces reserved.

Integrated dual-channel acquisition circuits
Integrated dual-channel high-speed DAC
Abundant FPGA resources FPGA
Large DDR3 memory
Abundant bus interfaces
External Clock Input
JTAG for debugging & secondary development

Enquire about this product

Specifications Block diagrams Handling notes

TECHNICAL DATA

Technical specifications

Specifications correspond to the product catalogue. Contact our technical team for configuration and operating conditions.

SYHS-DRFM Technical specifications
Parameter	Specification / typical value
DAC Performance
Output Frequency	Supports 9kHz to 6GHz
Resolution	16bit
Number of Channels	Independent dual-channel
Sampling Rate	Up to 12.6 GSPS (configurable)
SFDR	≤-83dBc@1.8G
Output Signal Power	-10dBm @ 50Ω (fine adjustment available)
Number of Channels	2 channels
Coupling Mode	Ch.1 AC coupling; Ch.2 DC coupling
High-Speed ADC Performance
Resolution	14bit
Sampling Rate	Up to 1.25 GSPS (configurable)
SNR	60dBFS@375MHz，1GSPS
SFDR	70dBFS@375MHz，1GSPS
Number of Channels	Independent dual-channel
ENOB	9.6bit
Analog Input (Ai)	1.46Vp-p≤Ai≤1.94Vp-p
Sampling Bandwidth	≤625MHz
Coupling Mode	AC coupling
Low-Speed ADC Performance
Resolution	16bit
Sampling Rate	Up to 80 MSPS (optional)
SNR	77.6dBFS@7MHz
SFDR	93dB FS@7MHz
Number of Channels	Independent dual-channel
ENOB	12.6bit
Number of Channels	Independent dual-channel
Channel Isolation	93dBc
FPGA Performance
Model	XC7Z100-2FFG900I
Processor	Dual-Core ARM Cortex-A9 MPCore Up to 1GHz
Logic Cells	444K
LUTs	277.4K
Block RAM	26.5Mb
DSP	2020
Flip-Flops	554.8K
Memory
DDR3	PS: 1GB at 1600MT/s; PL: 2GB at 1600MT/s
SD Card	32GB default
Dual QSPI Flash	2*256Mbit
Communication
QSFP: 40Gbps data rate	Supported
USB debug serial port	Supported
General GPIO ports	Supported
Input Clock Frequency	100MHz (internal or external, selectable)
Signal Formats	Built-in AM, FM, CW, FMCW (others to be developed)
General
Power Supply	+12V DC / ≤2.5A (full operation)
Dimensions (L×W×H)	181 mm × 100 mm × 38.3 mm (with heat sink)
Weight	≤680g

Specifications are subject to change without notice. Contact our technical team for full conditions, interface definitions, and ordering information.

SYSTEM ARCHITECTURE

Product block diagrams

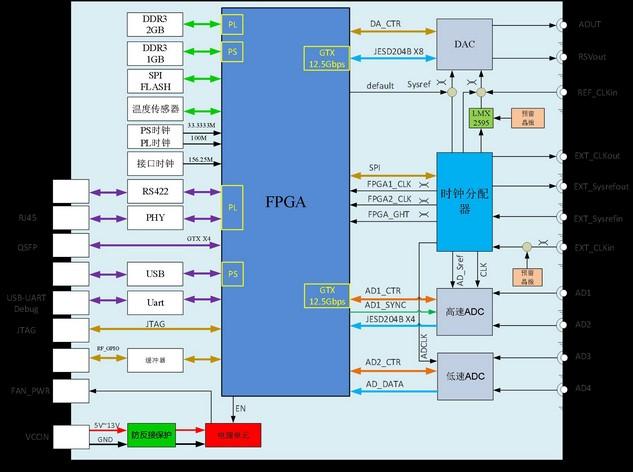

SYHS-DRFM block diagram 1 — SYHS-DRFM / Diagram 1 Open full image ↗

Handling notes

Take anti-static precautions and ensure device ports are clean before use.
Use a torque wrench to tighten coupling nuts where applicable.
Check connector pin depth before calibration to avoid damage to calibration devices.
