SYHS-RFSOC-PCIEHigh-Speed Acquisition & Replay Card

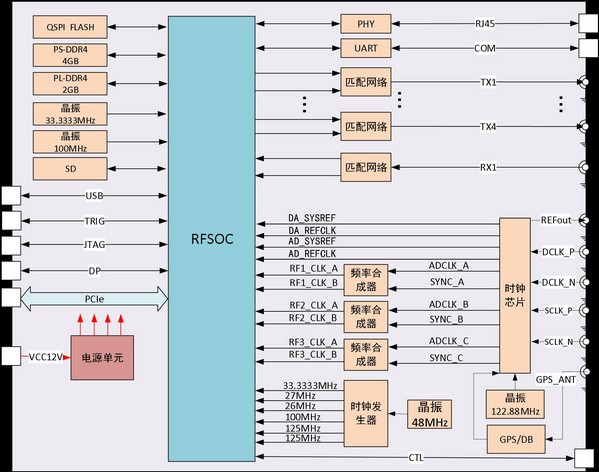

The SYHS-RFSOC-PCIE is an RFSOC-based PCIe high-speed signal generation and acquisition board with 4 TX and 1 RX RF channels. It leverages the ZU47DR's integrated high-speed ADC/DAC for real-time RF acquisition and waveform generation, with PCIe high-throughput, low-latency data transfer and external reference clock support.

• RFSOC core, high integration;
• 4TX/1RX RF channels; high-speed acquisition & arbitrary waveform generation;
• PCIe interface for low-latency, high-throughput data transfer; PCIe
• External ref. clock; multi-board sync;
• On-chip real-time DSP to reduce host load.
